Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg

Name: Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg
Brand: Jindun
Price: 1 USD

Quality Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg for sale

Brand Name : Jindun

Model Number : PM150M

Certification : ISO9001/CCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 90 days after sign contract

Supply Ability : 350 units/year

Packaging Details : Exporting standard package or customized packing

Water volume : 10000L

Foam volume : 2000L

Fire monitor : Rosenbauer brand

Monitor flow : 90L/s

Priming time : ≤80s

Pressure : 1.0MPa

Material : High quality 304 stainless steel

Foam mixer : 3% or 6%

Product name : 15 tons water and foam fire truck

Contact Now

Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg

Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg

Pipeline

Outlet pipeline	2×DN80 ordinary pressure outlet 1×DN50 ball valve
Suction inlet	1×DN150 suction coupling 1×DN150 pneumatic butterfly valve
Monitor pipeline	1×DN125 monitor pipeline 1×DN125 butterfly valve
Residual water outlet	Water cock
Pump drive system	NMV200
Drive shaft	High balance precision

Liquid tank

Capacity	Water: 10000kg Foam: 2000kg
Material	304 high quality corrosion resistant plate
Structure	Total side girder
Pressure	1.0MPa
Device	2 manhole 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92

Dry powder tank

Dry powder filling capacity: 500Kg

Working pressure: 1.2 ~ 1.4MPa

Dry powder tank is a pressure vessel which is mainly welded by Q345R material. It is made of feeding powder port, discharging powder port, nitrogen delivery pipe and discharge powder tube, tank nitrogen delivery pipe is a ring shape which is equipped with multiple intake valves, so that gas and powder can mixing uniformly, with fluidized state. The design of intake valve makes dry powder be inaccessible to nitrogen gas delivery pipe.

All cylinders are placed in a bottle rack to supply gas for dry powder tank. Nitrogen cylinder group is consisting of nitrogen cylinder, bottle valve, high pressure gauge, air inflation connection, high pressure ball valves and other components.

Product Tags:

Euro 3 Emission standard Fire Truck

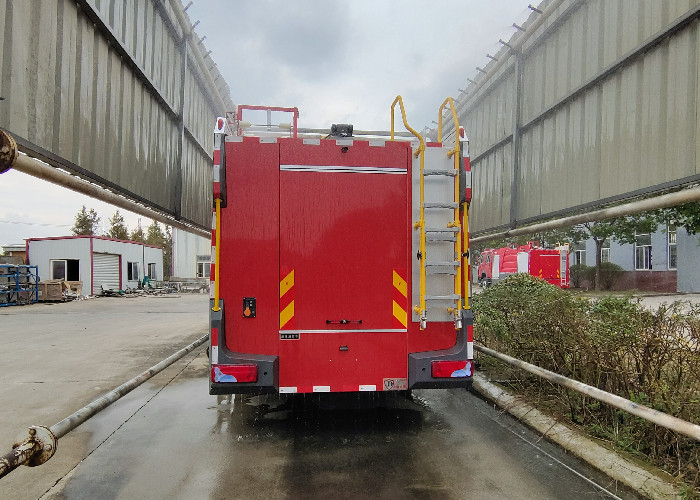

Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg Images
